Chevy Colorado 2015 2016 available now at Jim Autos

New Chevy Colorado 2015 2016 model is now available at Jim Autos Thailand and Jim 4x4 Thailand. Used 2007, 2008, 2009, 2010, 2011, 2012, 2013 and 2014 Chevy Colorado is also available at Thailand top pickup truck exporter. More details are at http://toyota-dealer.org/Chevy-Colorado/

In Thailand, Chevrolet has offered customers a choice of 26 combinations of Colorado models, powertrains, cabins, and ride heights, including single-, extended (extra)- and double (crew)-cab bodies in high- and low-stance configurations, wide- and narrow-body options, as well as two- and four-wheel-drive configurations.

The engine range comprises of two new Duramax turbocharged four-cylinder diesels with a displacement of 2.5- and 2.8-liters, both built at GM Thailand’s newly opened $200 million engine plant.

GM said the 2.5-liter diesel is rated at 150HP (110 kW) and 258 lb.-ft. of torque (350 Nm), while the larger 2.8-liter unit generates 180HP (132 kW) and 346 lb.-ft. of torque (470 Nm) with an available six-speed automatic transmission 324 lb.-ft. / 440 Nm when fitted with a five-speed manual gearbox.

Depending on the model, the new Colorado can be equipped with several safety features such as electronic stability control, anti-lock braking system featuring electronic brake force distribution, traction control, hydraulic brake assist, cornering brake control and driver and occupant front air bags.

Used Chevy Colorado 2008 2009 2010 2011 available at Jim Autos

Here are some pics of the 2008 2009 2010 2011 model Chevy Colorado.

Chevy Colorado 2008 front - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand Chevy Colorado 2008 rear - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand

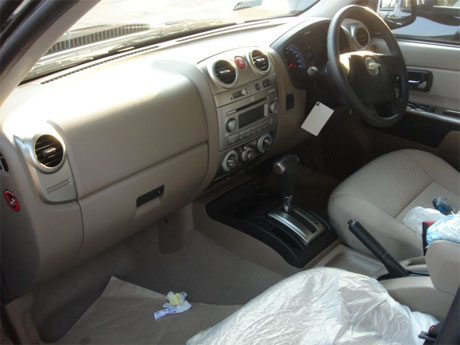

Chevy Colorado 2008 interior - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand Chevy Colorado 2008 steering - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand

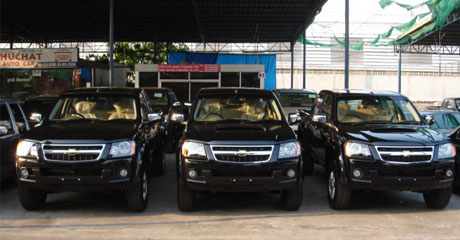

Chevy Colorado 2008 rows  - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand Chevy Colorado 2008 engine view - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand

Since it is the accessories that turn a pickup into a great ride, he is a look after accessories had been installed on the above vehicles:

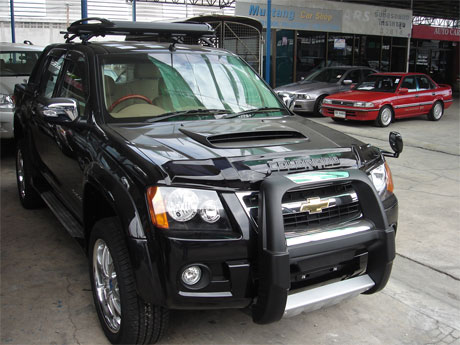

Chevy Colorado 2008 accessorized front view - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand Chevy Colorado 2008 accessorized rear view - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand
Chevy Colorado 2008 accessorized interior view - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand Chevy Colorado 2008 accessorized tv - Get your Chevy now at Jim Autos Thailand and Jim 4x4 Thailand

Chevrolet Colorado Intro

Jim Autos is Thailand's largest and oldest exporter of Chevy Colorado. Buy your next Chevy Colorado, Toyota Vigo, Mitsubishi Triton or Ford Ranger at Jim by emailing us today at jim12cars@gmail.com

Chevrolet Colorado is a proud successor to the legendary S-series trucks that redefined the small-truck segment by grafting the handling and performance characteristics of a midsize sedan (MacPherson IFS, V-6 power) onto a compact pickup platform.

Bigger, bolder and more refined than any compact Chevy truck in years, the Colorado is an all-new pickup from Chevrolet. Slightly larger than the S-10 truck that it replaces, the Colorado features all-new engines, additional class-exclusive features and a tough new look that makes it instantly recognizable as a Chevrolet pickup. Built on a stout ladder frame chassis, the Colorado offers three body styles, two- and four-wheel drive and a choice of two new Vortec inline engines. Derived directly from the 4.2-liter straight six found in the TrailBlazer SUV, the Colorado's all-aluminum four- and five-cylinder power plants are the most technologically advanced engines ever offered in a compact Chevrolet truck. Both engines use dual-overhead camshafts, four valves per cylinder and electronic throttle control to deliver a broad range of peak torque that extends from 1,200 to 5,600 rpm on the standard 2.8-liter four-cylinder, and from 1,400 to 5,200 rpm on the optional 3.5-liter five-cylinder. Both engines offer a choice of a four-speed automatic or a new five-speed manual.

The suspension consists of a solid rear axle with leaf springs and an independent coil spring front suspension. An off-road package swaps out the coil springs for torsion bars, while a sport package adds an anti-sway bar in back. Off-road enthusiasts will also appreciate the Colorado's dual-speed push-button transfer case as well as the optional locking rear differential. Since the majority of compact truck buyers purchase their vehicles for personal use, the Colorado was given a more refined and feature-laden cabin than the previous S-10. The overall design is simple, with rotary dials for the climate control system and a large radio faceplate for easy control of the XM Satellite Radio-compatible audio system. Materials quality still isn't great, but build quality has improved considerably, so expect fewer loose trim pieces and smaller panel gaps.

Extended cab models feature reverse-opening rear doors on both sides for easier access to the backseats, while the large crew cab models offer a 60/40-split folding rear seat that can seat three adults, according to Chevrolet. Regardless of whether the cabs are comfortable or not, segment-first side curtain airbags are available that provide head protection in the event of a side impact or rollover accident. Standard antilock brakes and optional traction control on 2WD models further contribute to the Colorado's complement of safety features. All things considered, the Colorado offers all the necessary ingredients to satisfy the majority of compact truck buyers. Its range of engines provides both efficiency and power, and with three body styles to choose from in both two- and four-wheel drive, finding a perfect fit shouldn't be too difficult. Although its old-tech S-10 predecessor has kept Chevrolet off the minds of many compact truck buyers as of late, the Colorado has the hardware to make Chevrolet a legitimate competitor in this segment once again.

Colorado has intelligent power plants that perform the way you need them to, including an available Vortec 3500 I-5 engine that generates the horsepower of a V6 with the fuel efficiency of a four-cylinder.



Specifications

Chevrolet Colorado S-CAB

Features
  2WD Single Cab 2.5 GL1
Interior
Cluster with techometer
Control switch at door panel -
Airconditioning with heated glass system
Digital milage
Central lock  -
Power window  -
Radio with cassette
Speaker 2
Seat and door panel material Vinyl
Power steering with safety collapse system
Tilt steering -
Leather steering wheel and gear knob -
Intermittent wiper
Dome lamp
Power outlet -
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp -
Exterior
Light indicator at side mirror -
Front grill
Bumper body colour
Fog lamp -
Housing side mirror Black
Electric adjustable side mirrors  -
Door handle Black
Door handle at tailgate  -
Rear bumper  -
Over fender body colour -
Steel wheel 15"
Alloy wheel -
Tire size 215/70 R15
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate -
Sunband -
Front dual airbags (driver & passenger) -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger -
Adjustable seat belt (height - low)
Rear defogger -
ABS, EBD include. G-sensor -
Limited slip -
Remote control include. Alarm system -
Third brake light -
Child door lock -
Door half latch warning
Key reminder -
Head lamp reminder -
Selt belt warning
Tools
Immobilizer system  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER

Chevrolet Colorado X-CAB Specs

Features
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with techometer Silver trim Silver trim
Control switch at door panel - - Silver trim - Silver trim
Airconditioning with heated glass system
Digital milage
Central lock  -  -  -
Power window  -  -  -
Radio with cassette
Speaker 4 4 6 4 6 6 6 6
Seat and door panel material Tertis Kayak Tertis Kayak
Power steering with safety collapse system
Tilt steering - -
Leather steering wheel and gear knob - - -
Intermittent wiper Variable intermittent wiper Variable intermittent wiper
Dome lamp
Power outlet
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp - - -
Exterior
Light indicator at side mirror - - -
Front grill Body colour With Chrome insert With Chrome insert With Chrome insert
Bumper body colour
Fog lamp - - - -  -  -
Housing side mirror Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Electric adjustable side mirrors - - -
Door handle Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Door handle at tailgate Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Rear bumper  - - Black  - Black With Chrome insert With Chrome insert With Chrome insert
Over fender body colour - - - - - -
Steel wheel 15" - - 15" -  - - -
Alloy wheel - 15" 15" - 15" 15" 16" 16"
Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate - - - - - -
Sunband - - -
Front dual airbags (driver & passenger) - - - - -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger - - - - - - - -
Adjustable seat belt (height - low)
Rear defogger - - -
ABS, EBD include. G-sensor - -
Limited slip - - - - - - -
Remote control include. Alarm system - - - - -
Third brake light
Child door lock  - - -  -  -  - - -
Door half latch warning
Key reminder
Head lamp reminder
Selt belt warning
Tools
Immobilizer system  -  -  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER



Chevrolet Colorado C-CAB

Features
CREW CAB
2WD 2WD 4WD
2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with techometer Silver trim Silver trim
Control switch at door panel Silver trim Silver trim
Airconditioning with heated glass system
Digital milage
Central lock  -  -
Power window  -  -
Radio with cassette
Speaker 4 6 4 6 6 6 6
Seat and door panel material Tertis Kayak Tertis Kayak
Power steering with safety collapse system
Tilt steering - -
Leather steering wheel and gear knob - -
Intermittent wiper Variable intermittent wiper Variable intermittent wiper
Dome lamp
Power outlet
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp - -
Exterior
Light indicator at side mirror - -
Front grill Body colour Body colour Body colour Chrome Insert Chrome Insert
Bumper body colour
Fog lamp - - -  -  -
Housing side mirror Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Electric adjustable side mirrors -  -
Door handle Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Door handle at tailgate Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Rear bumper  - สีดำ - Black Chrome Insert Chrome Insert Chrome Insert
Over fender body colour - - - - -
Steel wheel 15" - 15" - - - -
Alloy wheel - 15" - 15" 15" 16" 16"
Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate - - - - -
Sunband -
Front dual airbags (driver & passenger) - - - -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger
Adjustable seat belt (height - low)
Rear defogger - -
ABS, EBD include. G-sensor - -
Limited slip - - - - - -
Remote control include. Alarm system - - - -
Third brake light
Child door lock
Door half latch warning
Key reminder
Head lamp reminder
Selt belt warning
Tools
Immobilizer system  -  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER



Technical Data

Chevrolet Colorado S-CAB

Technical Data
Single Cab 2.5 GL1
Engine
Engine Code 4JK1 - TC
Engine Diesel engine 4 in line Commonrail 16v - turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499
Bore x Stroke (mm.) 95.4 x 87.4
Compression ratio 18.3:1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 - 2200
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual Transmission
Gear Ratio 1st 4.008
  2nd 2.301
  3rd 1.427
  4th 1.000
  5th 0.745
  Rev. 3.651
Final gear ratio 3.583
Suspension
Front Independent, Double wishbone including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Heavy duty
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm.
Rear Drum 254 mm.
Brake booster  7" x 8"
Dimension
Length (with out rear bumper) (mm.) 5,055
Box length (mm.)  2,310
Width (mm.) 1,720
Height (mm.) 1,635
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460
Ground clearance (mm.) 200
Turning radius (m.) 5.9
Dimension Interior
Length passenger compartment - front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) -
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650
No. passenger 2
Tank capacities (l.) 76



Chevrolet Colorado X-CAB

Technical Data
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Engine
Engine Code 4JK1 - TC 4JJ1 - TC
Engine Diesel engine 4 in line Commonrail 16v - turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499 2,999
Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9
Compression ratio 18.3:1 17.5 : 1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 - 2200 294 (30) / 1,400 - 3,400
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual transmission Manual / Automatic Manual Manual / Automatic
Gear Ratio 1st 4.008 4.008 / 2.785
  2nd 2.301 2.301 / 1.545
  3rd 1.427 1.427 / 1.000
  4th 1.000 1.000 / 0.694
  5th 0.745 0.828 / -
  Rev. 3.651 3.651 / 2.272
Final gear ratio 3.583 3.727/3.727 4.300/4.300
Suspension
Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Standard
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm.
Rear Drum 254 มม. Drum 254 มม. Drum 295 มม.
Brake booster  7" x 8"
Dimension
Length (with rear bumper) (mm.) 5,055 / 5,152
Box length (mm.) 1,840
Width (mm.) 1,720 1,720 1,798
Height (mm.) 1,640 1,640 1,755
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520
Ground clearance (mm.) 200 200 225
Turning radius (m.) 5.9 5.9 6.2
Dimension Interior
Length passenger compartment - front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) 599
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650 2,650 2,750
No. passenger 2
Tank capacities (l.) 76



Chevrolet Colorado C-CAB (Double Cab)

Technical Data
CREW CAB
2WD 2WD 4WD
2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Engine
Engine Code 4JK1 - TC 4JJ1 - TC
Engine Diesel engine 4 in line Commonrail 16v - turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499 2,999
Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9
Compression ratio 18.3:1 17.5 : 1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 - 2200 294 (30) / 1,400 - 3,400
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual transmission Manual transmission Manual / Auto Manual transmission Manual / Auto
Gear Ratio 1st 4.008 4.008 / 2.785
  2nd 2.301 2.301 / 1.545
  3rd 1.427 1.427 / 1.000
  4th 1.000 1.000 / 0.694
  5th 0.745 0.828 / -
  Rev. 3.651 3.651 / 2.272
Final gear ratio 3.583 3.727/3.727 4.300/4.300
Suspension
Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension CRS (Comfort-Ride Suspension)
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm.
Rear Drum 254 mm. Drum 254 mm. Drum 295 mm.
Brake booster 7" x 8"
Dimension
Length (with rear bumper) (mm.) 4,935 / 5,032
Box length (mm.) 1,420
Width (mm.) 1,720 1,720 1,798
Height (mm.) 1,640 1,640 1,755
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520
Ground clearance (mm.) 200 200 225
Turning radius (m.) 5.9 5.9 6.2
Dimension Interior
Length passenger compartment - front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) 826
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,150 2,150 2,200 2,250
No. passenger 5
Tank capacities (l.) 76



Older Specs



Model

Crew Cab 4x2

Ext Cab 4x4 (M)

General Information

Price [Baht]

from 457,000 Baht (see below)





Layout

front-engine / RWD

front-engine / awd

Drag Coefficient [cd]

NA



Curb Weight [lb (kg)]

3747 (1703)

3802 (1728)

Weight Distribution [%f / r]

NA

Cargo Space [cu ft.]

36.7

43.9





Overall Length [in. (mm)]

207.0 (5258)

Overall Width [in. (mm)]

67.6 (1717)

Overall Height [in. (mm)]

67.0 (1702)

66.3 (1684)

Wheelbase [in. (mm)]

125.9 (3198)

125.9 (3198)

Track Front [in. (mm)]

57.5 (1460)

59.6 (1514)

Track Rear [in. (mm)]

57.5 (1460)

57.5 (1460)

Steering

Rack & Pinion; Power-assisted

Turning Radius [ft. (m)]

21.5 (6.6)

20.5 (6.3)

Tires front

225/70 R15

235/75 R15

Tires rear

225/70 R15

235/75 R15

Engine

Type

all-aluminum Inline-5

all-aluminum Inline-4

Valvetrain

DOHC 4-valve/cyl.: continuously variable exhaust valve timing

Displacement [cc]

3460

2770

Bore & Stroke [mm]

93.0 x 101.6

Compression Ratio

10.0:1

Redline [rpm]

6300





Max. Power [Bhp at rpm]

220 at 5600

175 at 5600

Max. Torque [lb-ft (Nm) at rpm]

225 (305) at 2800

185 (251) at 2800

Bhp/Liter

63.6

63.2

Accommodation

Seating Capacity

5-6

4-5

Front Head Room [in. (mm)]

39.3 (998)



Front Leg Room [in. (mm)]

42.0 (1067)



Rear Head Room [in. (mm)]

37.9 (973)



Rear Leg Room [in. (mm)]

34.7 (881)

23.1 (587)

Interior Noise

Idle in neutral [dBA]

NA

70 mph coasting [dBA]

NA

Gear Ratios

1st

3.06:1

3.75:1

2nd

1.63:1

2.26:1

3rd

1.00:1

1.37:1

4th

0.70:1

1.00:1

5th

NA

0.73:1

Final drive

2.39:1

2.49:1

Suspension

Front

Independent; coil springs, anti-roll bar

Rear

Live-axle; steel leaf springs

Braking

Front - Brakes

11.2 in. (285 mm) ventilated discs

Rear - Brakes

11.6 in. (295) drums

70 - 0 mph [ft (m)]

NA

60 - 0 mph [ft (m)]

NA

Colorado Double Cab Features

Features
CREW CAB
2WD 2WD 4WD
2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with tachometer Silver trim Silver trim
Control switch at door panel Silver trim Silver trim
Air conditioning with heated glass system
Digital mileage
Central lock  -  -
Power window  -  -
Radio with cassette
Speaker 4 6 4 6 6 6 6
Seat and door panel material Tertis Kayak Tertis Kayak
Power steering with safety collapse system
Tilt steering - -
Leather steering wheel and gear knob - -
Intermittent wiper Variable intermittent wiper Variable intermittent wiper
Dome lamp
Power outlet
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp - -
Exterior
Light indicator at side mirror - -
Front grill Body colour Body colour Body colour Chrome Insert Chrome Insert
Bumper body colour
Fog lamp - - -  -  -
Housing side mirror Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Electric adjustable side mirrors -  -
Door handle Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Door handle at tailgate Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Rear bumper  - สีดำ - Black Chrome Insert Chrome Insert Chrome Insert
Over fender body colour - - - - -
Steel wheel 15" - 15" - - - -
Alloy wheel - 15" - 15" 15" 16" 16"
Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate - - - - -
Sunband -
Front dual airbags (driver & passenger) - - - -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger
Adjustable seat belt (height - low)
Rear defogger - -
ABS, EBD include. G-sensor - -
Limited slip - - - - - -
Remote control include. Alarm system - - - -
Third brake light
Child door lock
Door half latch warning
Key reminder
Head lamp reminder
Selt belt warning
Tools
Immobilizer system  -  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER

Double Cab Technical Data

Features
  CREW CAB
  2WD   2WD       4WD
  2.5 LS 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with techometer Silver trim Silver trim
Control switch at door panel Silver trim Silver trim
Airconditioning with heated glass system
Digital milage
Central lock  -  -
Power window  -  -
Radio with cassette
Speaker 4 6 4 6 6 6 6
Seat and door panel material Tertis Kayak Tertis Kayak
Power steering with safety collapse system
Tilt steering - -
Leather steering wheel and gear knob - -
Intermittent wiper Variable intermittent wiper Variable intermittent wiper
Dome lamp
Power outlet
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp - -
Exterior
Light indicator at side mirror - -
Front grill Body colour Body colour Body colour Chrome Insert Chrome Insert
Bumper body colour
Fog lamp - - -  -  -
Housing side mirror Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Electric adjustable side mirrors -  -
Door handle Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Door handle at tailgate Body colour Body colour Body colour Body colour Chrome Insert Chrome Insert Chrome Insert
Rear bumper  - สีดำ - Black Chrome Insert Chrome Insert Chrome Insert
Over fender body colour - - - - -
Steel wheel 15" - 15" - - - -
Alloy wheel - 15" - 15" 15" 16" 16"
Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate - - - - -
Sunband -
Front dual airbags (driver & passenger) - - - -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger
Adjustable seat belt (height - low)
Rear defogger - -
ABS, EBD include. G-sensor - -
Limited slip - - - - - -
Remote control include. Alarm system - - - -
Third brake light
Child door lock
Door half latch warning
Key reminder
Head lamp reminder
Selt belt warning
Tools
Immobilizer system  -  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER



Colorado Extra Cab Features

Features
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Interior
Cluster with techometer Silver trim Silver trim
Control switch at door panel - - Silver trim - Silver trim
Airconditioning with heated glass system
Digital milage
Central lock  -  -  -
Power window  -  -  -
Radio with cassette
Speaker 4 4 6 4 6 6 6 6
Seat and door panel material Tertis Kayak Tertis Kayak
Power steering with safety collapse system
Tilt steering - -
Leather steering wheel and gear knob - - -
Intermittent wiper Variable intermittent wiper Variable intermittent wiper
Dome lamp
Power outlet
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp - - -
Exterior
Light indicator at side mirror - - -
Front grill Body colour With Chrome insert With Chrome insert With Chrome insert
Bumper body colour
Fog lamp - - - -  -  -
Housing side mirror Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Electric adjustable side mirrors - - -
Door handle Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Door handle at tailgate Body colour Body colour Body colour Body colour Body colour With Chrome insert With Chrome insert With Chrome insert
Rear bumper  - - Black  - Black With Chrome insert With Chrome insert With Chrome insert
Over fender body colour - - - - - -
Steel wheel 15" - - 15" -  - - -
Alloy wheel - 15" 15" - 15" 15" 16" 16"
Tire size 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 215/70 R15 245/70 R16 245/70 R16
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate - - - - - -
Sunband - - -
Front dual airbags (driver & passenger) - - - - -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger - - - - - - - -
Adjustable seat belt (height - low)
Rear defogger - - -
ABS, EBD include. G-sensor - -
Limited slip - - - - - - -
Remote control include. Alarm system - - - - -
Third brake light
Child door lock  - - -  -  -  - - -
Door half latch warning
Key reminder
Head lamp reminder
Selt belt warning
Tools
Immobilizer system  -  -  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER



Colorado Extra Cab Technical Data

Technical Data
EXTENDED CAB
2WD 2WD 4WD
2.5 LS 2.5 LS1 2.5 LT 3.0 LS 3.0 LT 3.0 LT1 3.0 Z71 3.0 Z71 4X4
Engine
Engine Code 4JK1 - TC 4JJ1 - TC
Engine Diesel engine 4 in line Commonrail 16v - turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499 2,999
Bore x Stroke (mm.) 95.4 x 87.4 95.4 x 104.9
Compression ratio 18.3:1 17.5 : 1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600 107 (146) / 3,600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 - 2200 294 (30) / 1,400 - 3,400
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual transmission Manual / Automatic Manual Manual / Automatic
Gear Ratio 1st 4.008 4.008 / 2.785
  2nd 2.301 2.301 / 1.545
  3rd 1.427 1.427 / 1.000
  4th 1.000 1.000 / 0.694
  5th 0.745 0.828 / -
  Rev. 3.651 3.651 / 2.272
Final gear ratio 3.583 3.727/3.727 4.300/4.300
Suspension
Front Independent, Double wishbone including Gas absorber Independent, Double wishbone including Gas absorber Independent, Double wishbone with stabilzer bar including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Standard
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm. Ventilated Disc 256 mm. Ventilated Disc 280 mm.
Rear Drum 254 มม. Drum 254 มม. Drum 295 มม.
Brake booster  7" x 8"
Dimension
Length (with rear bumper) (mm.) 5,055 / 5,152
Box length (mm.) 1,840
Width (mm.) 1,720 1,720 1,798
Height (mm.) 1,640 1,640 1,755
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460 1,460 / 1,460 1,515/1,520
Ground clearance (mm.) 200 200 225
Turning radius (m.) 5.9 5.9 6.2
Dimension Interior
Length passenger compartment - front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) 599
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650 2,650 2,750
No. passenger 2
Tank capacities (l.) 76



Colorado Single Cab Features

Features
  2WD Single Cab 2.5 GL1
Interior

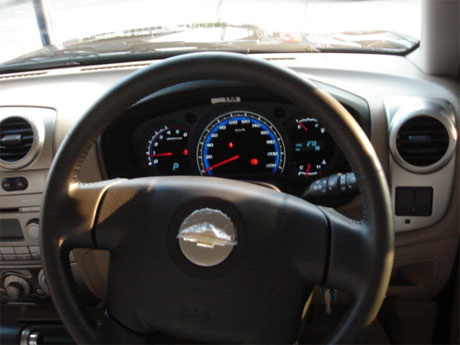

Cluster with techometer
Control switch at door panel -
Airconditioning with heated glass system
Digital milage
Central lock  -
Power window  -
Radio with cassette
Speaker 2
Seat and door panel material Vinyl
Power steering with safety collapse system
Tilt steering -
Leather steering wheel and gear knob -
Intermittent wiper
Dome lamp
Power outlet -
Cigarette package
Middle console with 2 cupholders
Overhead console include. sunglasses pocket/map lamp -
Exterior
Light indicator at side mirror -
Front grill
Bumper body colour
Fog lamp -
Housing side mirror Black
Electric adjustable side mirrors  -
Door handle Black
Door handle at tailgate  -
Rear bumper  -
Over fender body colour -
Steel wheel 15"
Alloy wheel -
Tire size 215/70 R15
Safety
Hologen headlights
Safety front windshield
Side beam protector
Skid plate -
Sunband -
Front dual airbags (driver & passenger) -
Seat belt 3 points for driver & passenger
Seat belt 3 points for rear passenger -
Adjustable seat belt (height - low)
Rear defogger -
ABS, EBD include. G-sensor -
Limited slip -
Remote control include. Alarm system -
Third brake light -
Child door lock -
Door half latch warning
Key reminder -
Head lamp reminder -
Selt belt warning
Tools
Immobilizer system  -
Body Colour
ZENITH BLUE
STERLING SILVER
IMPERIAL BLOND
FOXFIRE RED
BLACK SAPPHIRE
LIGHT PEWTER



Colorado Single Cab Technical Data

Technical Data
Single Cab 2.5 GL1
Engine
Engine Code 4JK1 - TC
Engine Diesel engine 4 in line Commonrail 16v - turbo Direct Injection including Intercooler
Cylinder capacities (cc.) 2,499
Bore x Stroke (mm.) 95.4 x 87.4
Compression ratio 18.3:1
Max. Horse Power (Kw(PS)/rpm) 85(116)/3600
Max. Torque (Nm (Kg-m) / rpm)  280(29)/1800 - 2200
Injector Electronic controlled injector
Transmission and clutch
Transmission Manual Transmission
Gear Ratio 1st 4.008
  2nd 2.301
  3rd 1.427
  4th 1.000
  5th 0.745
  Rev. 3.651
Final gear ratio 3.583
Suspension
Front Independent, Double wishbone including Gas absorber
Rear Semi elliptical, alloy steel leaf spring including Gas absorber
Loading suspension Heavy duty
Steering
Type Rack and Pinion include. Power steering
Brake system
Front Ventilated Disc 256 mm.
Rear Drum 254 mm.
Brake booster  7" x 8"
Dimension
Length (with out rear bumper) (mm.) 5,055
Box length (mm.)  2,310
Width (mm.) 1,720
Height (mm.) 1,635
Wheelbase (mm.) 3,050
Wheelbase front/rear (mm.) 1,460 / 1,460
Ground clearance (mm.) 200
Turning radius (m.) 5.9
Dimension Interior
Length passenger compartment - front (mm.) 1,085
Height from seat (mm.) 1,004
Width shoulder level (mm.) 1,450
Width waist level (mm.) 1,325
Distance front & rear seat (mm.) -
Slide distance (mm.) 198
Capacities
Gross weight (kg.) 2,650
No. passenger 2
Tank capacities (l.) 76



Colorado Gallery

Colorado Regular Cab Sport LS

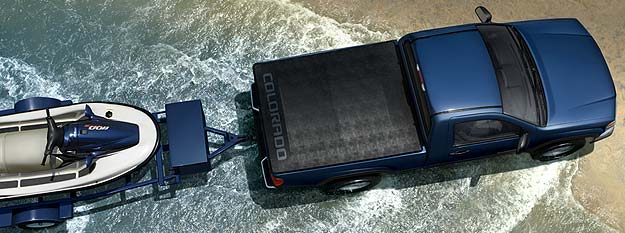

Colorado Regular Cab Z85 4x4 LS

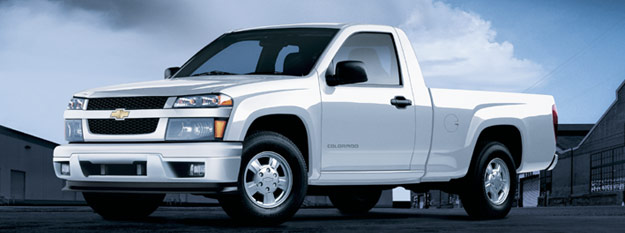

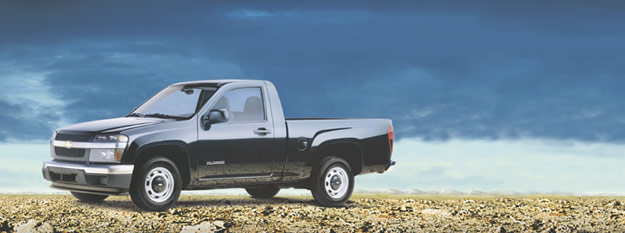

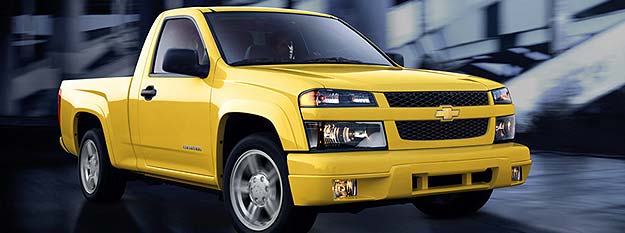

Colorado Regular Cab Z85
Colorado Regular Cab Z85

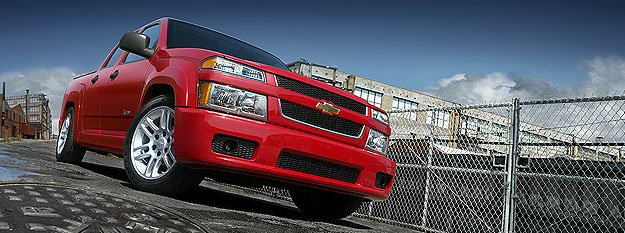

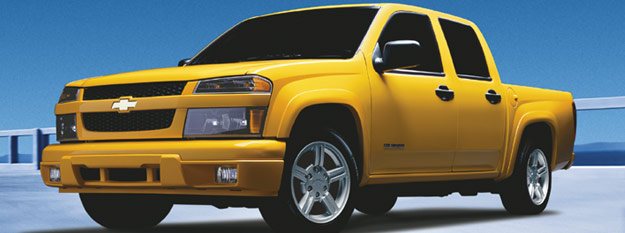

Colorado Crew Cab Sport LS

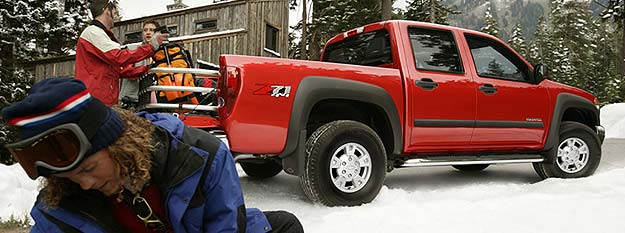

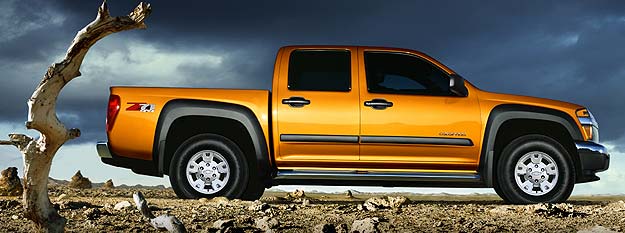

Colorado Crew Cab Z71 4x4 LS

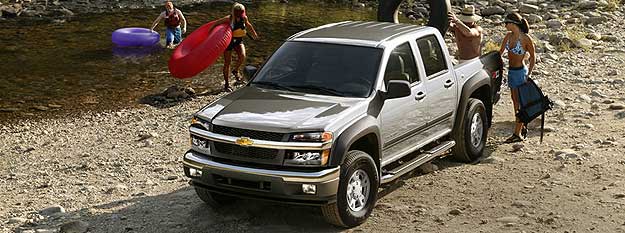

Colorado Crew Cab Z71 4x4 LS

Colorado Crew Cab Z71 4x4 LS

Colorado Crew Cab Sport LS

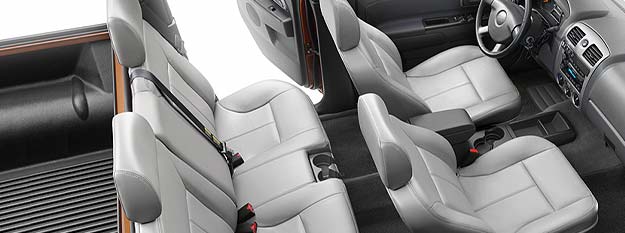

Colorado Crew Cab Z71 4x4 LS interior

Colorado Extended Cab Z85 LS

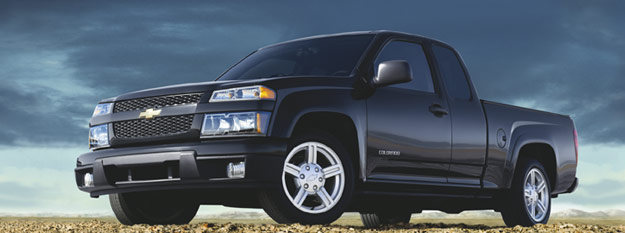

Colorado Extended Cab Sport LS

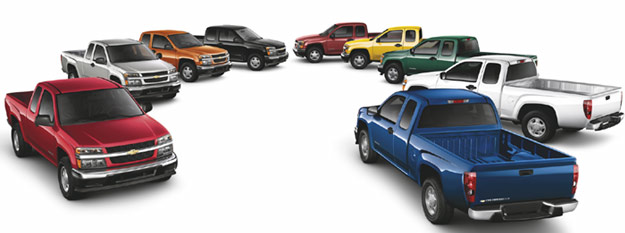

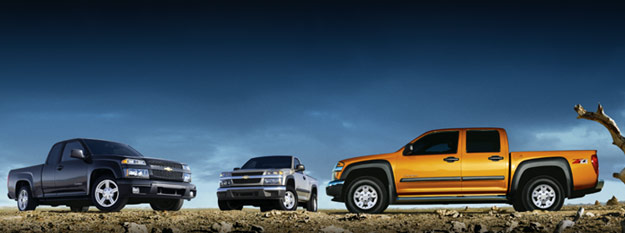

Left to right: Colorado Extended Cab Sport LS; Colorado Regular Cab Z85 4x4 LS; Colorado Crew Cab Z71 4x4 LS

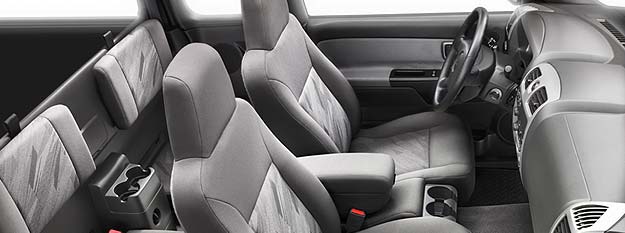

Colorado Extended Cab LS interior

Colorado Single Cab



Model :

Colorado S Cab Base 2.5L

Engine Type :

4JA1-L Direct Injection Turbo

Engine Capacity :

2499

Style :

Single Cab

Driving System :

2WD

Transmission :

Manual 5 Speed

Colorado Extra Cab LS and LT

Model :

Colorado X Cab LS 2.5L

Colorado X Cab LS1 2.5L

Colorado X Cab LT 3.0L Colorado X Cab LT 3.0L

Engine Type :

4JA1-L Direct Injection Turbo 4JA1-L Direct Injection Turbo 4JJ1-TC Commonrail Turbo Direct injection 4JJ1-TC Commonrail Turbo Direct injection

Engine Capacity :

2499 2499 2999 2999

Style :

Extra Cab

Extra Cab

Extra Cab Extra Cab

Driving System :

2WD

2WD

2WD 2WD

Transmission :

Manual 5 Speed

Manual 5 Speed

Manual 5 Speed

Automatic 4 speed

Colorado Extra Cab Z71

Model :

Colorado X Cab Z71 M/T 3.0 L

Colorado X Cab 4x4 Z71 M/T 3.0 L

Colorado X Cab 4x4 Z71 A/T 3.0L

Engine Type :

44JJ1-TC Commonrail Turbo Direct injection 44JJ1-TC Commonrail Turbo Direct injection 4JJ1-TC Commonrail Turbo Direct injection

Engine Capacity :

2999 2999 2999

Style :

Extra Cab

Extra Cab

Extra Cab

Driving System :

2WD

4WD

4WD

Transmission :

Manual 5 Speed

Manual 5 Speed

Automatic 4 Speed

Colorado C Cab

Model :

Colorado C Cab LS 3.0L

Colorado C Cab LT 3.0L

Colorado

C Cab LT1 3.0L A/T

Engine

Type :

44JJ1-TC Common-rail Turbo Direct injection

44JJ1-TC Common-rail Turbo Direct injection

4JJ1- TC Common-rail Turbo Direct injection

Engine Capa-city :

2999 2999 2999

Style :

Double Cab

Double Cab

Double Cab

Driving Sys-tem :

2WD

2WD

2WD

Trans-mission :

Manual 5 Speed

Manual 5 Speed

Automatic

4 Speed



Model :

Colorado

C Cab Z71 M/T 3.0L

Colorado

C Cab Z71 A/T 3.0L

Colorado C Cab 4x4 Z71 M/T 3.0L Colorado C Cab 4x4 Z71 A/T 3.0L

Engine

Type :

4JJ1- TC Common-

rail Turbo Direct injection

44JJ1- TC Common-

rail Turbo Direct injection

44JJ1- TC Common-rail Turbo Direct injection 4JJ1- TC Common-rail Turbo Direct injection

Engine Capa-city :

2999 2999 2999 2999

Style :

Double Cab

Double Cab

Double Cab Double Cab

Driving Sys-tem :

2WD

2WD

4WD 4WD

Trans-mission :

Manual 5 Speed

Automatic 4 Speed

Manual 5 Speed Automatic 4 Speed

Fuel Economy

Engine

EPA Estimated MPG city/hwy.

Vortec 2800 I-4

2WD with 5-speed manual (Regular and Extended Cab models)

21/27

2WD with 5-speed manual (Crew Cab models)

21/26

4x4 with 5-speed manual

19/23

2WD with 4-speed automatic

18/25

4x4 with 4-speed automatic

17/23

Vortec 3500 I-5

2WD with 5-speed manual

19/25

4x4 with 5-speed manual

19/24

2WD with 4-speed automatic (Regular and Extended Cab models)

18/23

4x4 with 4-speed automatic (Regular and Extended Cab models)

18/22

2WD with 4-speed automatic (Crew Cab models)

18/23

4x4 with 4-speed automatic (Crew Cab models)

17/22



Dimensions

NOTE: All dimensions shown are inches/millimeters unless otherwise noted.

Exterior

Regular Cab

Extended Cab

Crew Cab

Wheelbase

111.3/2826

126.0/3200

126.0/3200

Length

192.4/4886

207.1/5260

207.1/5260

Height

2WD

64.9/1649

64.9/1649

65.5/1656

4x4

67.6/1718

67.6/1718

67.9/1725

Width

68.6/1742

68.6/1742

68.6/1742

2WD tread width

front

57.5/1460

57.5/1460

57.5/1460

rear

57.5/1460

57.5/1460

57.5/1460

4x4 tread width

front

59.0/1499

59.0/1499

59.0/1499

rear

59.2/1504

59.2/1504

59.2/1504

Bumper to front axle

33.9/861

33.9/861

33.9/861

Rear overhang

47.2/1199

47.2/1199

47.2/1199



Cargo Box

Regular and Extended Cab Box

Crew Cab Box

Length at floor

72.8 (Reg.), 72.8 (Ext.)/1849

61.1/1552

Width at floor

57.2/1453

57.2/1453

Width at floor

57.2/1453

57.2/1453

Width between wheel housings

42.6/1081

42.6/1081

Tailgate width

52.4/1331

52.4/1331

Inside height

18.6/472

18.6/472

Cargo box volume1 (cu. ft.)

43.9

36.7

1

Cargo and load capacity limited by weight and distribution.

Interior

Regular Cab

Extended Cab

Crew Cab

Headroom
front 39.6/1006 39.6/1006 39.6/1006
rear 37.9/972 38.3/973
Legroom
front 42.2/1071 42.2/107 42.2/107
rear 23.1/587 34.8/883
Shoulder room
front 57.1/1450 57.1/1450 57.1/1450
rear 57.2/1453 57.1/1450


Capacities

  Regular Cab Extended Cab Crew Cab

Seating

2/3

4/5

5/6

Fuel tank, approximate (gal./liters)

19/71.9

19/71.9

19/71.9

GVWR, standard (lbs./kg)1

Z85 2WD

4850/2200 5000/2268 5000/2268
Z85 4x4 5150/2336 5300/2404 5300/2404
Sport 2WD 4400/2000 4600/2091 4600/2091
Z71 2WD 5150/2336 5300/2404 5300/2404
Z71 4x4 5150/2336 5300/2404 5300/2404
Payload, base (lbs./kg)2

Z85 2WD

1547/702

1532/695

1316/597

Z85 4x4

1535/697

1523/691

1338/607

Sport 2WD

1037/470

1074/487

857/389

Z71 2WD

1743/791

1746/792

1432/650

Z71 4x4

1486/674

1474/669

1190/540

Curb weights, estimated (lbs./kg)

Z85 2WD

3303/1489

3468/1573

3684/1671

Z85 4x4

3615/1640

3777/1713

3972/1797

Sport 2WD

3363/1525

3526/1599

3843/1743

Z71 2WD

3407/1545

3554/1612

3868/1754

Z71 4x4

3664/1662

3826/1735

4110/1864

1

Gross Vehicle Weight Rating (GVWR). When properly equipped; includes weight of vehicle, driver, passengers, cargo and optional equipment.

2

Maximum payload capacity includes weight of driver, passengers, optional equipment and cargo.

Trailering

Maximum trailer weight ratings (lbs./kg) — Manual Transmission
Engine Vortec 2800 I-4 Vortec 3500 I-5
Regular Cab
2WD 2400/1088 3800/1724
4x4 2000/907 3500/1588
Extended Cab
2WD 2200/998 3700/1768
4x4 1900/862 3400/1542
Crew Cab 4x4
2WD 2000/907
4x4 1700/771

Maximum trailer weight ratings (lbs./kg) — Automatic Transmission

Engine Vortec 2800 2.8L I-4 Vortec 3500 3.5L I-5
Regular Cab
2WD 3400/1542 4000/1814
4x4 3100/1406 4000/1814
Extended Cab
2WD 3200/1451 4000/1814
4x4 2900/1315 4000/1814
Crew Cab
2WD 3100/1406 4000/1814
4x4 2700/1225 4000/1814


Maximum trailer weight ratings are calculated assuming a base vehicle, except for any option(s) necessary to achieve the rating, plus driver. The weight of other optional equipment, passengers and cargo will reduce the maximum trailer weight your vehicle can tow.

NOTE: Trailer tongue weight should be 10 to 15 percent of total loaded trailer weight up to 500 lbs.

NOTE: For recreational towing restrictions and availability, consult the Owner’s Manual.

Braking



U.S. Standard

Metric

Front

Rotor size (diam. x thick.)

11.0 x 1.1 in.

280 x 27mm

Swept area

105.7 sq. in.

681.7 sq. cm

Rear

Drum size (diam. x width)

11.6 x 1.8 in.

295 x 45mm

Swept area

64.6 sq. in.

417 sq. cm

Engine

Engine Vortec 2800 I-4 Vortec 3500 I-5
Displacement (cu. in./liters) 169/2.8 211/3.5
Bore & stroke (in./mm) 3.66 x 4.0/91.4 x 101.6 3.66 x 4.0/91.4 x 101.6
Compression ratio 10.0:1 10.0:1
Cylinder block material aluminum aluminum
Cylinder head material aluminum aluminum
Valve configuration DOHC DOHC
Valves/cylinder 4 4
Ignition system coil-on-plug coil-on-plug
Lifters hydraulic roller hydraulic roller
Cam drive chain chain
Coolant capacity (quarts/liters)
manual transmission 9.5/9 9.5/9
automatic transmission 9.5/9 9.5/9
Oil capacity (quarts/liters) 4.5/4.3 4.5/4.3
Alternator rating (amps) 100 100
Battery (SAE rating, cca) 690 690
Recommended unleaded fuel 87 octane 87 octane
Maximum engine speed (RPM) 5600 5600
Horsepower/kW (@ engine RPM) 175/130.5 @ 5600 220/164.1 @ 5600
Torque (lb.-ft./N-m @ RPM) 185/250 @ 2800 225/305 @ 2800

Steering



Ratio

2WD

18.1:1 (on center)

4x4

19.1:1 (on center)

Turning diameter curb-to-curb (ft./m)

Regular Cab models: 40/12.2 (approx.); Extended and Crew Cab models: 44.6/13.6 (approx.)

Transmission



Manual 5-speed w/overdrive

Automatic 4-speed w/overdrive

First gear

3.75

3.05

Second gear

2.26

1.62

Third gear

1.37

1.00

Fourth gear

1.00

0.69

Fifth gear

0.73

Reverse

3.67

2.29

Case material

die-cast aluminum

die-cast aluminum



Engines & Power
Four- Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4
Horse-power 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4
Horsepower 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Opt. Opt.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. Std. Std.
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Opt. Opt.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. Std. Std.
Fuel Economy
Four-Wheel Drive Trims Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
City (mpg) 18 18 18 18 18 18 18 17
Highway (mpg) 23 23 23 23 23 23 23 22
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
City (mpg) 19 19 19 19 19 19 19 19
Highway (mpg) 24 24 24 24 24 24 24 24
Comfort & Convenience
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A N/A N/A N/A
Power Door Locks N/A N/A N/A N/A N/A N/A N/A N/A
Leather Seats N/A N/A N/A N/A N/A N/A N/A Opt.
Power Seats N/A N/A N/A N/A N/A N/A N/A Opt.
Max. Seating 3 3 3 5 3 5 5 6
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A N/A N/A N/A
Power Door Locks N/A N/A N/A N/A N/A N/A N/A N/A
Leather Seats N/A N/A N/A N/A N/A N/A N/A N/A
Power Seats N/A N/A N/A N/A N/A N/A N/A N/A
Max. Seating 3 3 3 3 5 2 3 5
Entertainment
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Opt. Std. Opt. Opt. Std. Std. Opt. Std.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A
Rear-Wheel Drive Trims Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Opt. Std. Opt. Opt. Opt. Std. Std. Opt.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A
Safety
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std.
Traction Control N/A N/A N/A N/A N/A N/A N/A N/A
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std.
Traction Control Opt. Opt. Opt. Opt. Opt. Opt. Std. Opt.
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A
Final Assembly
Four-Wheel Drive Trims

Z85 4WD LS Z85 4WD Z71 4WD Z85 Ext. Cab 4WD LS Z71 4WD LS Z85 Ext. Cab 4WD Z71 Ext. Cab 4WD Z85 Crew Cab 4WD
Rear-Wheel Drive Trims

Z85 2WD LS Z85 2WD ZQ8 2WD Z71 2WD Z85 Ext. Cab 2WD LS ZQ8 2WD LS Z71 2WD ZQ8 Ext. Cab 2WD



Engines & Power
Four- Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 3.5L 220 hp I5 3.5L 220 hp I5
Horse-power 175 @ 5600 RPM 175 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Standard Engine 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 2.8L 175 hp I4 3.5L 220 hp I5 3.5L 220 hp I5 3.5L 220 hp I5 3.5L 220 hp I5
Horsepower 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 175 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM 220 @ 5600 RPM
Torque (lb-ft) 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 185 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM 225 @ 2800 RPM
Transmissions
Four-Wheel Drive Trims LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
4-Speed Automatic Overdrive Opt. Opt. Std. Std.
5-Speed Manual Overdrive Std. Std. N/A N/A
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
4-Speed Automatic Overdrive Opt. Opt. Opt. Opt. Opt. Opt. Std. Std. Std. Std.
5-Speed Manual Overdrive Std. Std. Std. Std. Std. Std. N/A N/A N/A N/A
Fuel Economy
Four-Wheel Drive Trims LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
City (mpg) 18 17 17 17
Highway (mpg) 23 22 22 22
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
City (mpg) 19 19 19 19 19 19 19 19 19 19
Highway (mpg) 24 24 24 24 24 24 24 24 24 24
Comfort & Convenience
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Sunroof N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std.
Power Windows N/A Std. N/A Std.
Power Door Locks N/A Std. N/A Std.
Leather Seats N/A Opt. Opt. Opt.
Power Seats N/A Opt. Opt. Opt.
Max. Seating 5 6 6 5
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Sunroof N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Air Conditioning Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Power Windows N/A N/A N/A N/A N/A Std. N/A N/A Std. Std.
Power Door Locks N/A N/A N/A N/A N/A Std. N/A N/A Std. Std.
Leather Seats N/A N/A Opt. N/A N/A Opt. Opt. Opt. Opt. Opt.
Power Seats N/A N/A Opt. N/A N/A Opt. Opt. Opt. Opt. Opt.
Max. Seating 5 5 6 4 5 6 5 6 5 5
Entertainment
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Cassette Player N/A N/A N/A N/A
CD Player Std. Std. Std. Std.
Nav. System N/A N/A N/A N/A
Rear-Wheel Drive Trims LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Cassette Player N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
CD Player Std. Opt. Std. Std. Std. Std. Std. Std. Std. Std.
Nav. System N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Safety
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side

ABS Brakes Std. Std. Std. Std.
Traction Control N/A N/A N/A N/A
Stability Control N/A N/A N/A N/A
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Airbags Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
Driver
Side
ABS Brakes Std. Std. Std. Std. Std. Std. Std. Std. Std. Std.
Traction Control Opt. Opt. Opt. Opt. Std. Std. Opt. Std. Std. Std.
Stability Control N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Final Assembly
Four-Wheel Drive Trims

LS Z71 Ext. Cab 4WD LS Z85 Crew Cab 4WD Z71 Crew Cab 4WD LS Z71 Crew Cab 4WD
Rear-Wheel Drive Trims

LS Z85 Ext. Cab 2WD Z71 Ext. Cab 2WD Z85 Crew Cab 2WD LS ZQ8 Ext. Cab 2WD LS Z71 Ext. Cab 2WD LS Z85 Crew Cab 2WD ZQ8 Crew Cab 2WD Z71 Crew Cab 2WD LS ZQ8 Crew Cab 2WD LS Z71 Crew Cab 2WD
Performance
  0 - 60 Time
(seconds)
1/4 Mile Time
(seconds)
1/4 Mile Speed
(mph)
Braking 60 - 0
mph (ft.)
Chevrolet Colorado LS Crew Cab 4wd - I5 3.5L (220 hp) 4A + ABS 8.50 16.50 87.40 150
Chevrolet Colorado LS Crew Cab 4wd - I5 3.5L (220 hp) 4A + ABS 10.03 17.53 82.50 156



For glossary of technical automotive terms, please check our Glossary page.



fj cruiserIt is our great pleasure to welcome you to Jim Autos. According to Statcounter, you are the

free hit counters
-th visitor to our site.

Our Australia, United Kingdom and Dubai Divisions Jim Autos Australia, UK and Dubai offers all kinds of new and used vehicles from Australia, United Kingdom, Dubai and United States ranging from sedans, small cars, family cars, estate cars station wagons, cabriolets convertibles, executive cars, 4x4 pickups, 4x4 SUVs, coupes, Multi-purpose vehicles (MPVs), vans, trucks to construction and farm machinery from Toyota, Honda, Nissan, Mitsubishi, Lexus, Mazda, Isuzu, Infiniti, Audi, Mercedes Benz, VolksWagen, BMW, Porsche, Alfa Romeo, Fiat, Ferrari, Lamborghini, Maserati, Iveco Trucks, Land Rover, Jaguar, Mini, Aston Martin, Bentley, Lotus, Vauxhall, Rolls Royce, Citroen, Renault Cars, Bugatti, Peugeot, Renault Trucks, Chrysler, Jeep, Ford, Chevrolet, Saab, Volvo, Scania Trucks, Volvo Trucks, DAF Trucks, Hyundai, Ssang Yong, Kia, Seat and Skoda



© 2001-2016 :: Jim Group of Companies :: All rights reserved ::  email us at jim12cars@gmail.com jim12cars@gmail.com :: Jim group is largest exporter supplier of Toyota Vigo Hilux, Mitsubishi L200 Triton, Nissan Navara as well as Honda, Suzuki and Kawasaki motorbikes
